Products

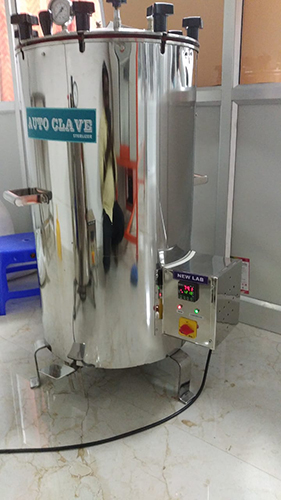

1.New lab Autoclave Vertical Model

Model	Height * Dia	Load	Ltrs
NLE -AC1	450 x 250 mm	2.0 k w	22 Ltrs
NLE -AC2	550 x 350 mm	3.0 k w	53 Ltrs
NLE -AC3	650 x 450 mm	4.0 k w	90 Ltrs
NLE -AC4	750 x 550 mm	6.0 k w	175 Ltrs

Double wall Construction with inner S.S 304.all these sheets are Tic Welded & Outer Chamber made of high quality S.S 304 Sheet. Electrically heated by means of I,S,I quality immersion heaters with working pressure 15 PSI. Hydraulically dye pressed lid from S,S plate with , easy pedal lifting device, having pressure gauge two nos , safety valve, quick release coupling to work on 220 / 230 v

Optional :-

Bottom drain made of SS for all the models.

Automatic electronic cut off device in case of low water level.

Pressure cut off device through digital temperature controller.

Automatic cut of device: Once the pressure reaches 15 pounds the timer starts and exactly after 15 minutes the whole system will go off.

Fully Automatic Micro Processor Unit

2.New lab Autoclave Horizontal Model

Model	Inner chamber Dia & Depth	Load	Options
NLE-HAC 1	350 x 550 mm	4.0 kw	With boiler Without boiler
NLE-HAC 2	450 x 600 mm	6.0 kw	With boiler Without boiler
NLE-HAC 3	550 x 750 mm	8.0 kw	With boiler Without boiler
NLE-HAC 4	400 x 1100mm	9.0 kw	With boiler Without boiler

3.New lab B.O.D Incubator

Model	Dimension	Ltrs
NLE BOD-3	3Cuft H420 mm x w 400 mm D 650 mm	90 Ltrs
NLE BOD-4	4Cuft H 610 mm x w 455 mm D 410 mm	120 Ltrs
NLE BOD-6	6Cuft H 830 mm x w 505 mm D 445 mm	150 Ltrs
NLE BOD-10	10Cuft H 875 mm x w 570 mm D 550 mm	275 Ltrs
NLE BOD-12	12Cuft H 900 mm x w 650 mm D 580 mm	350 Ltrs

Most Versatile for Biochemical Oxygen Demand Determinations.These Cooling Incubators are Designed Specially for close Controlof incubation/ storage Temperature. These are used for BOD test,Storage of Sensitive cultures, Vaccines etc; Culture of bacteria microorganism and plant life ; Serum incubation studies and immunological work etc. There is provided illumination inside the working Chamber with the help of CFL. Double wall Construction, inner made of SS and Outer M,S Beautifully powder coated with adjustable trays. The instrument is having CFC free Refrigeration and heating system with powerful Air Circulation for Creating positive airflow Throughout the working chamber. The unit having a temperature Range from 5o  C to 60oC with an accuracy of +/- 0.5 0C Temperature is controller cum indicator.

Optional :-

a. Automatic Voltage Stabilizer 2 Kva
b. Automatic Voltage Stabilize 4 Kva

4.Biological safety cabinet

Model	Size of Work Table	Outer Dimension
NLE-BSC1	2’ x 2’ x 2’	29” x 36” x 76”
NLE-BSC2	3’ x 2’ x 2’	41” x 36” x 76”
NLE-BSC3	4’ x 2’ x 2’	53” x 36” x 76”
NLE-BSC4	5’ x 2’ x 2’	65” x 36” x 76”
NLE-BSC5	6’ x 2’ x 2’	77” x 36” x 76”

Biological Safety Cabinets ( “Class II” ) an integral factory assembled system, permitting total disinfections. These are designed to use simultaneous primary biological and chemical containment. The recirculation of cabinet air through a second HEPA Filter ( High Efficiency Particular Air-Mini Pleat type ) offers a highest level of cleanliness. Air is drawn through pre-filter and is made to pass through HEPA Filter having efficiency to pertaining all airborne particles of size 0.3 microne and larger. Using a dynamic balanced motor with blower assembly system ( 1/5HP-1440 RPM ) operates with minimum noise level and the contaminated air is going through the exhaust duct ( 1/4 HP motor – 2880 RPM ) fitted on the back bottom of the unit. The basic unit made of good quality Marine Plywood with Poly Urithene Coating which includes standard accessories like static pressure manometer, Hepa Filters for cabinet ( Mini pleat type ) Pre-filters, one UV light for the work area, one coak for gas. It is suitable for handling medium to low risk organisms encountered in Research, Investigation, Labs in all branches of Medical, Agriculture, and Pharmaceutical Sciences.The equipment built with an exhaust system on the top of the unit having 4” dia PVC duct for the provision of connecting the pipe. In addition to normal features of Vertical Laminar Flow, it is provided with following unique features.
a)    Front door provided with UV stabilised polycarbonate sheet  in foldable manner.
b)   Filtered Exhaust – Protests ambient environment, avoids
build up, heat, fumes and odour.
c)   Supplementary Air Barrier :- Prevents of    contamination
through make up air.

d)    Built in U.V germicidal light – facilitates sterilization of working area before and after use, U.V Tube ‘Philips’ (Holland) is used.

e)    Cleanliness “CLASS II” with an efficiency of 99.99%

Nb : In accordance to its safety performance necessities and stipulations, the Bio Safety Cabinet (Class II) Can be constructed in the following types.

1.    TYPE – A : 70% air (approx) re-circulating & 30% exhausting

2.    Type – B1 : 30% air (approx) re-circulating & 70% exhausting

3.    Type – B2 – 100 % air exhausting & no re-circulation

Optional
a)  Virus burn-out chamber
b)   Dwyer magnehelic gauge
c)  Glass Bead Sterlizer 2” dia 4” depth
d)    Infra red activated sterilizer
e)    For Type B-2, CARBON HEPA FILTER (for filtering exhaust air prior to discharge the outside area) can be fitted to an extra cost on request.

N.B. :

Bio safety Cabinet under CLASS-1 Type can supply on special request.

5.New lab Dehumidifier : –

Model	Capacity
NLE-DH1	1 Ton
NLE-DH2	1.5 Ton

The Refrigerated unit is suitable for de-humidification of packaging cabin/rooms in food and chemical industry. The room or cabin should be well closed and occupants should be minimum, the achievable humidity approx 40%

Optional :

Humidistat Indian for the above system with digital display of
Humidity in Percentage.

6.New lab Distilled Water Still : –

Model	Capacity	Rating	Practical output
NLE-DW2	2 Ltrs per hour	1.5 kw	1.5 to 1.75 ltrs
NLE-DW4	4 Ltrs per hour	3 kw	3 to 3.25 Ltrs

7.New lab Deep Freezer – Horizontal Model : –

Model	Capacity	Chamber Size	Temperature
NLE-DF1	110 ltrs	550 x 400 x 650 mm	- 20°C
NLE-DF2	165 ltrs	800 x 400 x 650 mm	- 20°C
NLE-DF3	280 ltrs	1200 x 400 x 650 mm	- 20°C

This is an eco friendly and CFC free Refrigerant and Constructed of double wall, the exterior is made of M,S, Sheet beautifully powder coated, interior of SS having PUF insulation to minimize heat loss. Capillary controlled balanced and hermetically sealed Refrigeration is most economical, trouble free and exceptionally quiet performance. Temperature is controlled by Micro processor based Digital Temperature Controlled with single compartment having an accuracy of +/-3 ⁰C

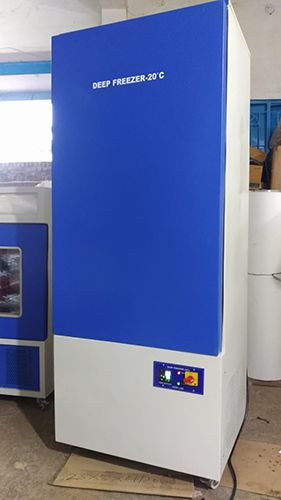

8.Newlab Deep Freezer ( Vertical ) : –

Model	Capacity	Chamber Size	Temperature
NLE-DF1	110 ltrs	550 x 400 x 650 mm	- 20°C
NLE-DF2	165 ltrs	800 x 400 x 650 mm	- 20°C
NLE-DF3	280 ltrs	1200 x 400 x 650 mm	- 20°C

This is an eco friendly and CFC free refrigerant and constructed of double wall The exterior is made of M,S, Sheet, powder coated and interior of S.S having PUF Insulation to minimize heat loss.Capillary controlled, balanced hermetically sealed Refrigeration is most  economical,  trouble  free  and  exceptionally  quiet performance and supplied with four nos standard storing trays.Temperature is controlled by Micro processor based Digital Temperature Controlled Cum Indicator having an accuracy of +/-30 C.

9.New lab Environmental Test Chamber:

Model	Capacity	Chamber Size
NLE-ETC1	170 ltrs	6 cu feet H 820 mm x w 500 mm x D 430 mm
NLE-ETC2	250 ltrs	10 cu feet H 970 mm x w 580 mm x D 500 mm
NLE-ETC3	325 ltrs	12 cu feet H 1020 mm x w 620 mm x D 530 mm

Double wall Construction, inside of /SS and Outside of M.S Beautifully power Coated with a front door having glass window to inspect the Samples inside the chamber. These Chambers are designed for environmental testing of production Samples where both Temperature and humidity are to be Controlled. Temperature can be controlled from 50 C to600 C With an accuracy of +/-10 C. Temperature and Humidity controlled by Digital Temperature Controlled Cum Indicator –LED ( Dry & wet bulb Method ) from 40% to 95% with Sensitivity of +/3%. Supplied with Relative Humidity Chart but without hygrometer. Power Supply- 220/230V.

Types:

a. Inner Chamber S S Outer M.S Powder coat finish

b. Inner & Outer Chamber Stainless Steel 304 quality

10.New lab Electric Bunsen Burner : –

Electrically operated with S.S body and glass wool insulation fitted with 300 w Heating element (Temperature up to 7000C approx ) With energy Regulator.

Model : NLE-EB700

11.New lab Fume Cupboard Table Top Model : –

Model	Size	Type
NLE-FH1	2 x 2 x 2	Wooden Body/M.S Body/S.S Body (304)
NLE-FH2	3 x 2 x 2	Wooden Body/M.S Body/S.S Body (304)
NLE-FH3	4 x 2 x 2	Wooden Body/M.S Body/S.S Body (304)
NLE-FH4	6x 2 x 2	Wooden Body/M.S Body/S.S Body (304)

These are designed to exhaust toxic and harmful vapours for protecting laboratory personnel equipments. The main body of the fume Cupboard is made of good quality Marine plywood with water & Chemical proof poly Urithene Coated and inside of the cup board is made from FRP Lining , which is acid or alkali resistant , fitted with a Sliding door made of U.V. stabiliced polycarbonate sheet , moves vertically up and down with counter balanced weight operated by steel Chain & Sprocket. Fluorescent light is provided inside the chamber for easy working .One FRP zinc of small size, water tap and gas cock are also provided inside the chamber . working top of the fume Cupboard is of Granite or acid proof tiles. A Major blower exhaust system (Blower and blower cover is made with FRP) fitted on the top of the working area, which generates negative pressure within the hood extracting the contaminated air from the fume escaping into the room , For this purpose there is provided a provision for connecting 4” dia PVC Pipe on the top of the instrument. Beneath the working area, fitted 3 drawers on one side and a closed storage area with a Provision for locking system on the other side of the unit.

Optional accessories : –

Base Storage Cabinet – wooden 2x2x2
3x2x2
4x2x2
6x2x2

Base storage Cabinet – M.S Body 2x2x2
3x2x2
4x2x2
6x2x2

Base Storage Cabinet – S.S Body 2x2x2
3x2x2
4x2x2
6x2x2

S.S Sink wash Basin with inlet & Outlet 2x2x2
3x2x2
4x2x2
6x2x2[/ezcol_1half_end]

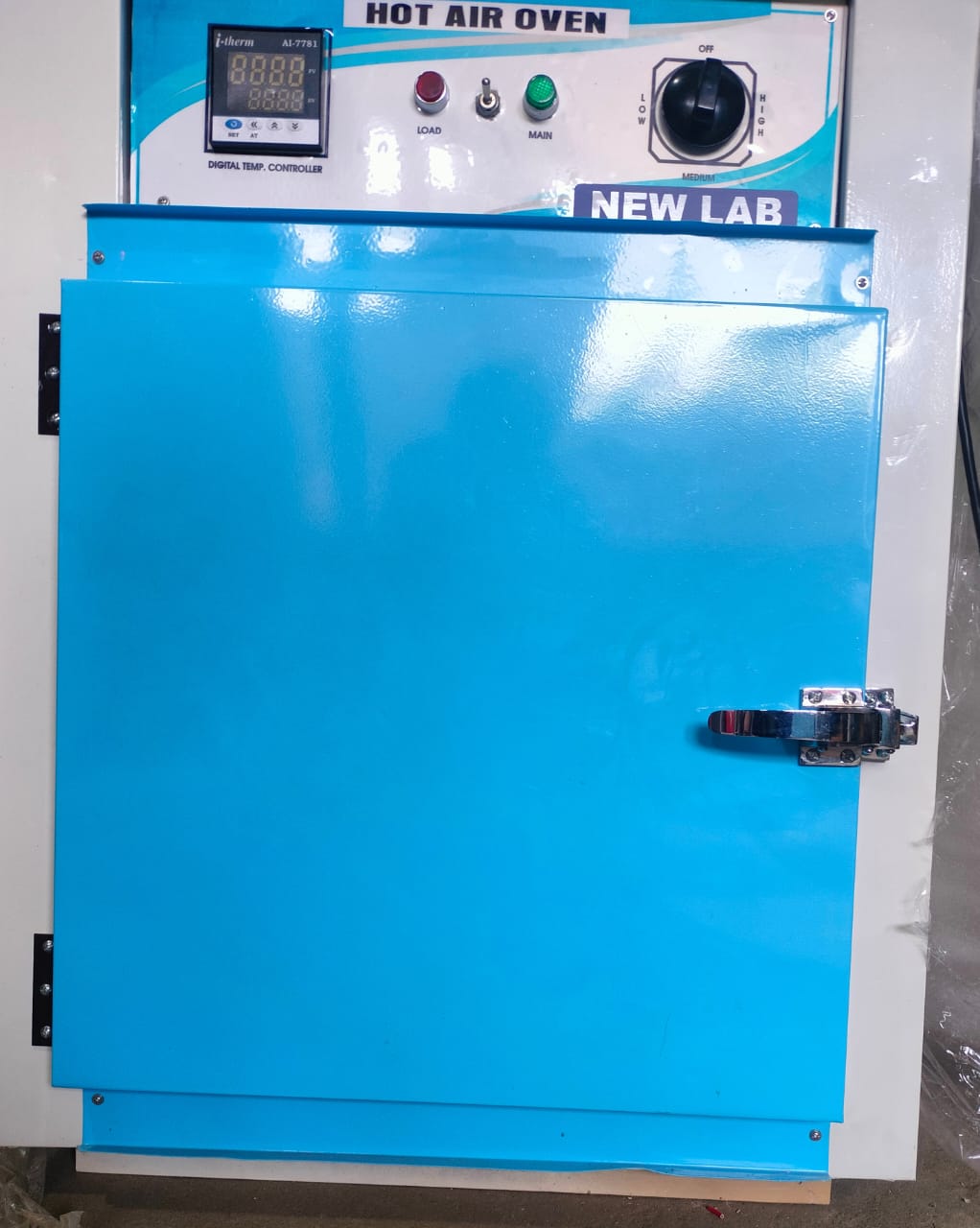

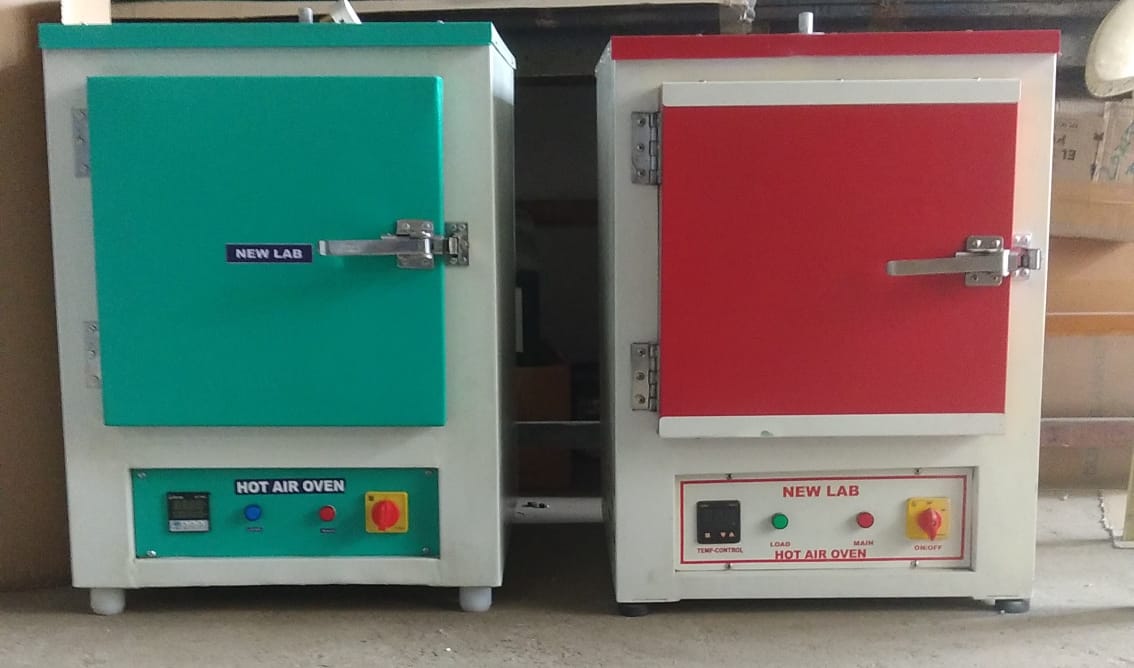

12.New lab Hot air Oven ( Bottom Heated ) + 5°C above Ambient to 250 ° C with a sensitivity ± 2 ° c

Inner chamber ( Stainless Steel)

Model	( Width x Breadth x Height )
NLE-HO1	355 x 355 x 355 mm
NLE-HO2	455 x 455 x 455 mm
NLE-HO3	455 x 455 x 605 mm
NLE-HO4	605 x 605 x 605 mm
NLE-HO5	605 x 455 x 910 mm
NLE-HO6	605 x 605 x 910 mm

Hot Air Ovens are sturdy double walled units Inner chamber made of S,S. and outer made of Mild Steed with Powder coating, Gap between the walls fitted with glass wool insulation to avoid heat loses. Heating elements are made of high grade chrome plated Nicrome wire. Temp is controlled by thermostat .Temp Range 50 0C to 250 0C and Accuracy +-1 0C Air Ventilations are placed on
top of both sides to remove hot gases/fumes.

13.New lab Hot air Oven Universal ( Memmert type) + 5°C above Ambient to 250 ° C with a sensitivity ± 2 ° c Inner chamber

( Stainless Steel )

Model	( Width x Breadth x Height )
NLE-HAO1	355 x 355 x 355 mm
NLE-HAO2	455 x 455 x 455 mm
NLE-HAO3	455 x 455 x 600 mm
NLE-HAO4	600 x 600 x 600 mm
NLE-HAO5	600 x 455 x 910 mm
NLE-HAO6	600 x 600 x 910 mm

Optional : –

Air circulating fan
Digital electronic temperature indicator cum control for oven

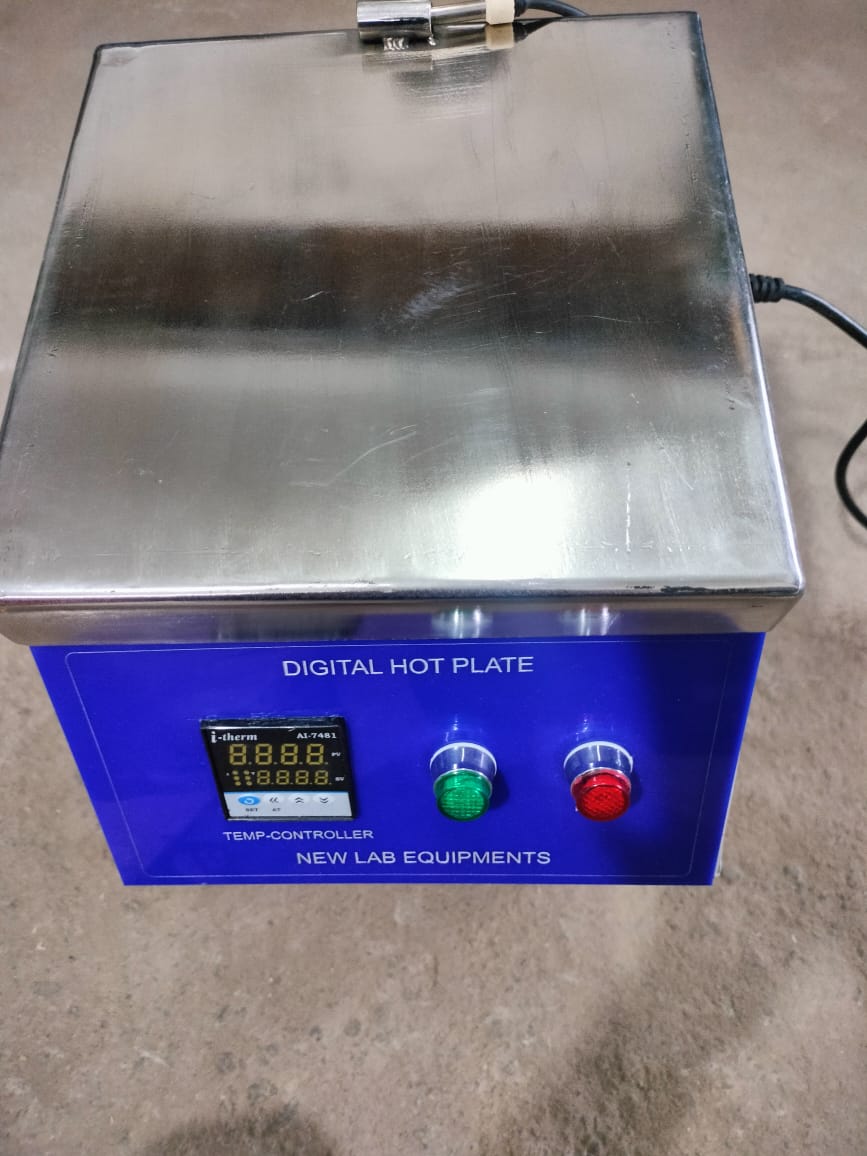

14.New lab Hot Plate :

(S.S.Top)

Model	Size	Load
NLE-HP1	10 x 12	1.2 kw
NLE-HP2	10 x 16	1.5 kw
NLE-HP3	12 x 18	2.0 kw
NLE-HP4	18 x 24	3.0 kw

Body constructed out of Mild Steel Sheet duly powder coated, supplied  with  wire  cord  and  plug  to  work  on  220/230 VAC(Temperature range 250 0C)

Rectangular (M.S Top)

Model	Size	Load
NLE-HP1	10 x 12	1.2 kw
NLE-HP2	10 x 16	1.5 kw
NLE-HP3	12 x 18	2.0 kw
NLE-HP4	18 x 24	3.0 kw

Heavy MS Body beautifully powder coated with MS Top fitted, with Energy Regulator and Rotary Switch supplied Complete with wire cord and plug to work on 220 /230VAC (Temperature 250⁰ C approx)

(M.S Top) Circular

Model	Size
NLE-HP1	MS 8” dia
NLE-HP2	MS 10” dia
NLE-HP3	MS 12” dia

(S.S Top ) Circular

Model	Size
NLE-HP1	SS 8” dia
NLE-HP2	SS 10” dia
NLE-HP3	SS 12” dia

15.New lab Humidity Oven

Model	Capacity	Size
NLE-HUO1	90 Lts	418 x 380 x 550 mm 3 cu ft
NLE-HUO2	150 Lts	418 x 440 x 825 mm 6 cu ft
NLE-HUO3	275 Lts	570 x 440 x 955 mm 10 cu ft
NLE-HUO4	350 Lts	616 x 565 x 100 mm 12 cu ft

Double walled Construction outer body made of MS beautifully powder coated and inner S.S with a front door having glass window to inspect the Samples inside the chamber , Temp range having ambient +50 C to 60 0C With an accuracy of +/-10C. Temperature and Humidity controlled by Digital Temperature Controlled Cum Indicator LED (Dry & wet Bulb Method ) From 40% to 95% with an accuracy of +/-3% Supplied with relative Humidity Chart but without hygrometer powder supply -220/230 V

Optional : –
a. Microprocessor controlled programmable Temperature and Humidity controller up to 99 % Humidity +/- 3 %
b. Chamber illumination with the help of fluorescent lamps each
c. Sterilization of work area with the help of 2 U.V Lamps
d. Cyclic Timer 0.24 hours for regulating working of UV lamps
e. Automatic voltage stabilizer 1 kw ( for 3 & 6 ) cft ) Automatic voltage stabilizer 3 k w (for 10 & 12 cft )
f.  Hygrometer (Humidity Indicator) Humidity Range 0 to 100 % R H

Model	Temperature	Type
NLEDB-1	50C to 250C	Thermostat Type
NLEDB-2	50C to 250C	Digital temp & timer 0-99 minutes type

Dry Bath use interchangeable heating block modules for a variety of applications, including restriction digests, denaturing DNA, BUN, melting agar, coagulation studies, hybridization and Hot Start thermo-cycled reaction. Aluminium block interface provides good conductivity and even temperature to allow rapid heating
and thermal control, temperature range is 500C to 2500C accuracy : +30C Opening size suitable for 6 to 25mm diameter test tube as your requirement.

17.New lab Heating Mantle With Regulator

Model	Capacity	Watts
NLEHM1	100 ml	200
NLEHM2	250 ml	500
NLEHM3	500 ml	500
NLEHM4	1000 ml	500
NLEHM5	2000 ml	800
NLEHM6	5000 ml	2500

18.New lab High Temperature Oil Bath : – Inner SS & Outer MS

Model	Inner Dimension Size	Load
NLE-OB1	250 x 250 x 250 mm	2.0 kw
NLE-OB2	300 x 300 x 300 mm	3.0 kw
NLE-OB3	355 x 355 x 355 mm	4.0 kw

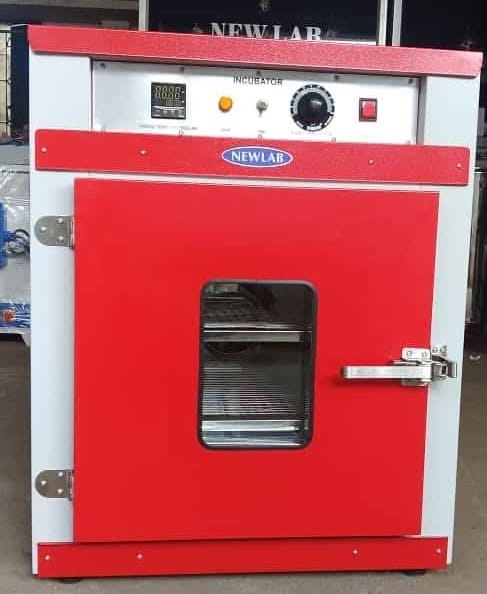

19.New lab Incubator ( Bottom Heated Inner Chamber S S) : – + 5°C above Ambient Up to 60 ° C with a sensitivity ± 2 ° c

Model	( Width x Breadth x Height)
NLE-ISS1	355 x 355 x 355 mm
NLE-ISS2	455 x 455 x 455 mm
NLE-ISS3	455 x 455 x 600 mm
NLE-ISS4	600 x 600 x 600 mm
NLE-ISS5	600 x 455 x 910 mm
NLE-ISS6	600 x 600 x 910 mm

20.New lab Incubator Memmert type + 5°C above Ambient Up to 60 ° C with a sensitivity ± 2 ° c Inner chamber ( S.S) : –

Model	( Width x Breadth x Height)
NLE-IM1	355 x 355 x 355 mm
NLE-IM2	455 x 455 x 455 mm
NLE-IM3	455 x 455 x 600 mm
NLE-IM4	600 x 600 x 600 mm
NLE-IM5	600 x 455 x 910 mm
NLE-IM6	600 x 600 x 910 mm

Optional : –

Air circulating fan
Digital electronic temperature indicator cum controller

21.New lab Industrial Stirrer : –

Model : NLE-IS1

Rating : 1 HP Single / Three Phase

22.New lab Innoculation Hood ( Aseptic Hood ) : –

Model : NLE-IH

Mode of M,S Sheet duly powder coated , equipped with exhaust system provided with Front plexy glass with one fluorescents lamp and one U.V germicidal lamp. Size : – 750 x 600 x 600 mm

23.Newlab Kjeldhal Digestion Unit: (Without Glass Parts ) : –

Model	Capacity	Type	Watts
NLE-KD1	300 ml	6 T x 6 R	900
NLE-KD2	500 ml	6 T x 6 R	1200
NLE-KD3	800 ml	6 T x 6 R	1800

Optional:

Glass Fume duct tube
Fume duct tube stainless steel

24.New lab Kjeldhal Digestion Distillation ( Combined unit ): –

Model	Capacity	Type	Watts
NLE-KDD1	300 ml	3T x 3R	600
NLE-KDD2	300 ml	6T x 6R	1200
NLE-KDD3	500 ml	3T x 3R	750
NLE-KDD4	500 ml	6T x 6R	1500
NLE-KDD5	800 ml	3T x 3R	900
NLE-KDD6	800 ml	6T x 6R	1800

25.New lab Laminar Air Flow : – Horizontal

Model	Dimension
NLE-LF1	2 x 2 x 2 feet
NLE-LF2	3 x 3 x 2 feet
NLE-LF3	4 x 2 x 2 feet
NLE-LF4	6 x 2 x 2 feet

Provide double filtered clean air through Pre Filters & HEP A Filters (”CLASS 100”) Basically constructed out of good quality Marine plywood with exterior Epoxy water & Chemical proof Poly Urithene coat and the air flow is coming in horizontal way (1/5 HP motor – 1440 Rpm) Worktable is made of S,S and side panels are made of U.V stabilized

Polycarbonate sheet framed in anodized Aluminium frame Static Inclined Manometer and Cork for gas, U.V. Lamp, Fluorescent light are also Provided. Air flow an Filtration Laminar. Flow principle involves double filtration of air. Atmospheric air is drawn through pre-filter and is made to pass though highly effective HEPA (High Efficiency particular Air-deep pleat) filter having efficiency Rating as high as 99..99% with cold DOP and 99.97% with hot DOP, thus Retaining all air borne particles of Size 0.3 micron and larger. Double filtered air blows In Laminar flow to the worktable at designed velocity of 90 ft /min +/-20% Noise Level less than 65 db at work area, and Vibration ; 0 005 cm of worktable.

Laminar Air Flow Cabinet Vertical Model : –

Laminar Flow principle involves double filtration of air . Atmospheric air is drawn through pre-filter and is made to pass through highly effective HEPA (High Efficiency Particular Air – deep pleat ) filter having efficiency rating as high as 99.99% with cold DOP and 99.97% with hot DOP (with the help of 1/5HP motor-1440Rpm) in vertical way and the contaminated air Is going through the exhaust duct (1/4HP motor 2880 Rpm) fitted on the back bottom of the unit Thus Retaining all air borne particles of size 0.3 micron and larger. Double filtered air blows in laminar flow to the worktable at designed velocity of 90 ft / min +/- 20 % . Noise level less than 65 db at work area, and Vibration; 0 005 cm of worktable the instrument is made of Marine Plywood with exterior Poly Urithene coated with putty finish & work table is S,S 304 Grade.

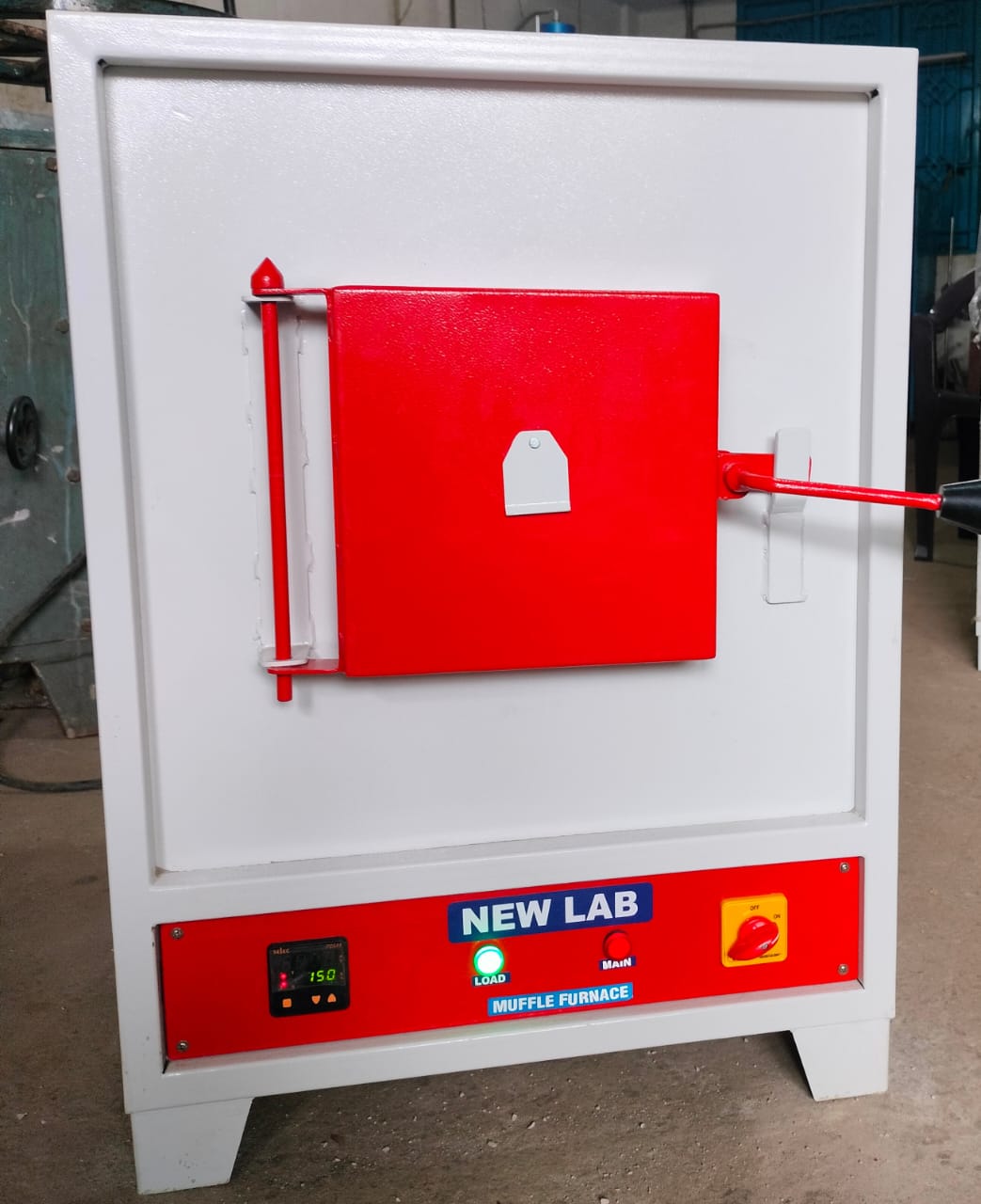

26.New lab Muffle Furnace – 930 ºc :

Model	Size
NLE-MF1	4 x 4 x 9”
NLE-MF2	5 x 5 x 10”
NLE-MF3	6 x 6 x 12”
NLE-MF4	8 x 8x 12”
NLE-MF5	12x 12x 12”

Rectangular electric furnace with light weight and fast Heating system, the body made Of    thick mild Steel Sheet duly powder coated with iron angles. The maximum temperature of 10000C and working temperature of 9000C, controlled by with Digital Controller Thermocouple with ceramic wool insulation.

New lab Muffle furnace : 1100 º c :

Model	Size
NLE-MF1	4 x 4 x 9 ”
NLE-MF2	5 x 5 x 10 ”
NLE-MF3	6 x 6 x 12 ”
NLE-MF4	8 x 8 x 12 ”
NLE-MF5	12 x 12 x12 ”

Rectangular electric furnace with light weight and fast Heating system, the body made Of    thick mild Steel Sheet duly powder coated with iron angles. The maximum temperature of 1200 C and working temperature of 1000 C controller Cum Indicator (LED)fitted with thermal Fuse and  thermocouple with ceramic wool insulation.

Optional : – Spares

Thermo couple CR/AL

27.New lab Melting Point Apparatus : –

Model	Type	Watts
NLE-MP1	With Sunvic Regulator	250
NLE-MP2	With solid state control	250
NLE-MP3	With Digital Temp Control	250
NLE-MP4	Melting cum Boiling Apparatus	1000

28.New lab Magnetic Stirrer : –

Model	Type	Capacity
NLE-MS1	With Hot plate	500ml, 1 Litre, 2 litre
NLE-MS2	Without Hot plate	500ml, 1 Litre, 2 litre

The body fabricated with MS sheet duly powder coated having SS top housing series of Magnetic Stirrers are most compact models . These are smooth running apparatus utilizing the rotating magnetic field from a balanced permanent magnet (Stirring speed – 1200 RPM ( approx ) to induce Variable stirring action in close or open non magnetic containers, Stirring is accomplished by a small Teflon coated magnetic paddle to be placed in the container.

29.New lab Oil Bath – Cylindrical : –

Model	Capacity	Watts
NLE-OB1	1 Litre	750
NLE-OB2	2 Litre	1000
NLE-OB3	3 Litre	1500

Double walled construction, inner made of SS Sheet outer body made of mild steel beautifully powder coated with glass wool insulation. The temperature is controlled by imported Thermostat having a temperature Range from 50 0C to 250 0C with an accuracy of +/-2 0C and without thermometer.

30.New lab Orbital Shaker: –

These shakers are made of fully stainless steel having Lotus Clamps holding various sizes of flasks and the orbital speed Ranging from 50-250RPM. The unit has build with Digital Controlled RPM and Digital timer – 1 to 99 minutes.

Size : 360 x 360 mm Cap 16 flasks x 250 ml

Optional :-

Additional platforms ( 100 ml x 25 nos, 500 ml x 9 nos 1000 ml x
4 nos ) each.

New lab Microprocessor Orbital Shaking Incubator without Compressor : –

Ambient above	Shaking Speed	Platform	Capacity
5°c - 60° c	50 – 250 RPM	360 x 360 mm	16 flasks x 250 ml

Newlab Orbital shaking incubator with Compressor : –

Ambient above	Shaking Speed	Platform	Speed Size
5°c - 60° c	50 – 250 RPM	360 x 360 mm	16 flasks x 250 ml 50 to 200 rpm

Specially designed to have a combined advantage of closely controlled incubation/storage Temperature with orbital shaking necessary  for  many  laboratory  uses  like  tissue  cultures fermentation studies, enzyme reactions, controlled purification , ageing tests ,growth studies etc, Double wall construction, the exterior is made of MS beautifully powder coated and interior of SS. The door having glass window makes it possible to inspect specimen without disturbing the temperature, Powerful air circulator creates positive airflow through the Incubator.

32.New lab P H Meter : –

Model : NLE-PH1

a. Fully Microprocessor based with LCD alphaneumeric Display
And easy menu driven key panel

Model : NLE-PH2

b. Digital Ph meter with seven segment LED Display and easy

Made selection by rotary switch

33.New lab Rota Mantle : –

    Used for variable speed with heating by mantle and temperature is controlled by Energy regulator.

Model	Size	Watts
NLE-RM1	250 ml	150
NLE-RM2	500 ml	200
NLE-RM3	1000 ml	300
NLE-RM4	2000 ml	500
NLE-RM5	3000 ml	500

34.New lab Soxhlet Extraction Mantle (C.O.D ) Without Glass Parts : –

100 ml to 350 ml - 3T X 3R = 450W

100 ml to 350 ml - 3T X 1R + 3S = 450W

100 ml to 350 ml - 4T X 4R = 600W

100 ml to 350 ml - 4T X 1R +4S = 600W

100 ml to 350 ml - 6T X 6R = 900W

100 ml to 350 ml - 6T X 1R +6S = 900W

500 ml - 3T X 3R = 600W

500 ml - 3T X 1R +3S = 600W

500 ml - 4T X 4R = 800W

500 ml - 4T X 1R +4S = 800W

500 ml - 6T X 6R = 1200W

500 ml - 6T X 1R +6S = 1200W

1000 ml - 6T S 6R = 1800W

1000 ml - 6T X 1R +6S = 1800W

Heating Mantles are arranged in a row. Housing is made MS Sheet duly powder coated , Supplied with two nos MS stand and one adjustable rod equipped with individual Energy Regulator and Pilot Lamp to work on 220 – 230 VAC

Glassware : –

Soxhlet extraction apparatus comprising flat bottom flask 250 ml Capacity Soxhlet extractor 250 ml capacity and bulb condenser all made borosil glass with standard interchangeable joints.

35.New lab Tray Drier : –

Model : NLE-TD1

a. 12 trays ¼ motor 3 phase 5 k w heating load temperature 100 deg
b. 24 trays ¼ motor 8 k w heating load temperature 100 deg
c. 48 trays 1 H P motor 12 k w heating load temperature 100 deg

Optional:

SS trays 20 swg Size: 32 x 16 x 1 ¼
Digital temperature controller cum indicator
Trolley mild steel

36.New lab Tissue culture Rack : –

Model	Size	No. of Racks	No of Tubes
NLE-TC1	60 x 60 x 18	4	16

Made with heavy gauge MS tubular pipe with thick gauge MS frame duly powder coated or Tubular Aluminium pipe with Aulminium frame having rack size of 48” X 21”. Height between each rack is 15”. Each rack is fitted with two nos of
fluorescent tube and one U.V Germicidal tube , Each tube has separate ON/OFF switch . 0-24 hours weekly Cyclic Timer Also Equipped with the unit for controlling all the U,V tubes inside the racks . Complete with 15 amps cord wire plug to work on 230 VAC.

37.New lab Ultra Cryostat Specifications: –

Model	Capacity	Chamber size	Temperature
NLE-UC1	12 ltres	220 x 220 x 260 mm	0°C to 100°C
NLE-UC2	28 ltres	300 x 360 x 300 mm	-10°C to 100°C
NLE-UC3	40 ltres	370 x 300 x 400 mm	-20°C to 100°C

This freezer specially engineered superior insulation and specially designed refrigeration system double walled with exterior of MS with beautifully powder coated interior of SS having PUF insulation to minimize heat loss. Capillary controlled , hermetically sealed CFC free refrigeration system to ensure most economical / trouble free and exceptionally quiet performance and also provided with castor wheels Temperature is controlled by micro processor Based Digital Temperature Controller Cum Indicator (LED)with single compartment upto -80⁰ C In AC room having an accuracy of +/- 3 ⁰C.

Optional : –

PID Temperature Controller for 1 ° C accuracy

38.New lab U V Cabinet : –

Model : NLE-UV

Made of MS sheet duly powder coated , provided with inspection hole, useful for viewing TLC Plate under UV light.

Chrome view cabinet with long and short wave and white light source and with Electronic chokes the unit IS powder coat painted.

39.New lab Vacuum Oven : –

Model	Size	Range
NLE-VO1	250 x 200 mm	200 Degree
NLE-VO2	250 x 250 mm	200 Degree
NLE-VO3	250 x 300 mm	200 Degree
NLE-VO4	300 x 300 mm	200 Degree
NLE-VO5	300 x 350 mm	200 Degree

Commonly using the temp range from 500 C to2500 C. The inner chamber is made of SS and outer of MS sheet beautifully powder coated glass wool insulation is provided all around the chamber to minimize heat loss due to radiation. The door and its frame is made of Ms heavy gauge extruded    Ac 220/230 v.

40.New lab Vacuum pump : – Single Stage : –

Model	Capacity	Power
NLE-VP1	50 litre	min ¼ HP single phase
	100 Litre	min ¼ HP single phase
	200 Litre	min ½ H P Single phase
	300 Litre	min 1 H P Single phase
	600 Litre	min 1 ½ H P Single phase

41.New lab Vacuum Pump : – Double Stage : –

Model	Capacity	Power
NLE-VP2	50 litre	min ¼ HP single phase
	100 Litre	min ½ H P Single phase
	200 Litre	min ½ H P Single phase
	300 Litre	min 1 ½ H P Single phase
	600 Litre	min 2 H P Single phase

Optional:

Oil Trap with Gauge
Oil Trap
Moisture trap
Three way connector with dial gauge
Exhaust filter
Vacuum control valve
Soleniod Valve

42.Vacuum Desicator Circular : – M.S

Model :NLE-VD

Size: 350 x 450mm

a. Vacuum Desicator Rectangular : – M.S

Size: 450 x 450 x 450mm

43.New lab V.D.R.L Shaker : –

Model :NLE-VDRL

44.New lab water bath – Rectangular ( 6 Holes Single walled ) :

Size: 350 x 250 x 100 mm ( 6 Holes )

Model	Type	Watts
NLE-WBR	Single Walled without Thermostat	1000
	Single Walled with Thermostat	1000
	Double walled with Thermostat (outer M.S)	1000
	Double walled with Thermostat ( Full S S)	1000

Optional : –

Digital Temp. Controller cum indicator

45.New lab Water bath (12 Holes Rectangular ) : –

Model	Size	Watts
NLE-WBR	Single walled without Thermostat 12 holes	1500
	Single walled with Thermostat 12 holes	1500
	Double walled with Thermostat ( Outer M.S) 12 Holes	1500
	Double Walled with Thermostat ( Full S S ) 12 Holes	1500

Double walled chamber, inner S S outer M.S with powder coat finish, Immersion heater, thermostat control, concentric rings, Glass wool insulation Temperature Range 5° C ambient to 90° C size: 400 x 300 x 100mm

Optional : –

Digital Temperature Controller cum indicator

Water Drain, Ball Valve

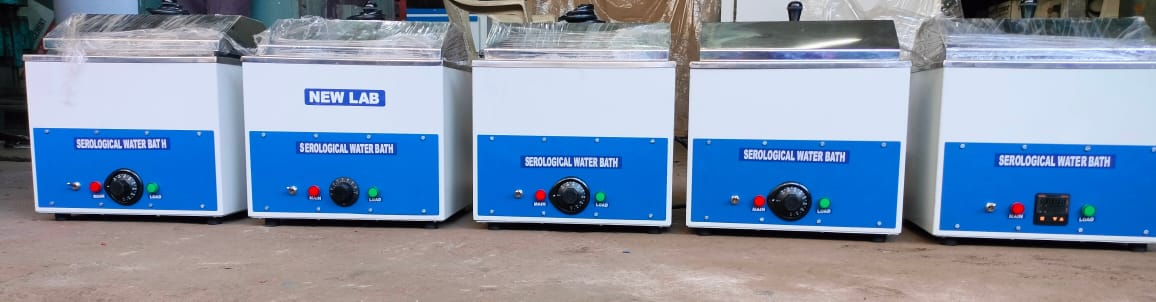

46.New lab Water Bath – Serological : with Thermostart

Model	Size
NLE-WBS	250 x 175 x 175 mm
	350 x 250 x 175 mm
	450 x 250 x 175 mm
	600 x 300 x 175 mm

Optional : –

a. Stirrer

b. Digital Temperature Controller

47.New lab Water Bath Serological Digital Temperature Controlled : –

Model	Size	Temperature Range
NLE-WBSD	410 mm l x 260 mm b x 260 mm	5 deg .c Above ambient to 100 deg accuracy : ± / .5 deg.c

( Any other size can also be manufactured upon request )

Optional : Stirrer

48.New lab Water Bath Constant Temperature with Digital Controller & Stirrer : –

Model	Capacity	Dimension
NLE-WBCT1	20 Lts	200 x 250 x 320 mm
NLE-WBCT2	24 Lts	220 x 250 x 320 mm
NLE-WBCT3	40 Lts	370 x 260 x 350 mm

49.New lab Water bath – Cylindrical double walled: –

with Thermostats Controller

Model : NLE-WBCD

I. Accuracy : ± 2 deg . c
Temperature range : 100 deg. c
Rating    : 1 kw
Size    : 20 cm dia x 15 cm height
Cap    : ( Approx in LTR) : 5 litre
ii. Accuracy : ± 2 deg c

Temperature Range : 100 deg . c
Rating    :  1.5 kw
Size    :  25 cm dia x 15 cm height
Cap    :  (Approx. In ltr) : 7.5 litre

iii. Accuracy : ± 2 deg . c

Temperature Range  : 100 deg. C
Rating: 2 k w
Size    :  32 cm dia x 22 cm height
Cap.    :  (Approx in. ltr) : 16 litre

50.New lab Wax Tub – Thermosatic

Model	Dimension	Watts
NLE-WT	300X300X300mm	2000 W

Double walled, inner made of SS 304 quality sheet and outer body made of MS duly powder coated. The bath is insulated with 25mm glass wool on 5 sides. Temperature is controlled by thermostat from ambient +50C to 800C with an accuracy of +/-10C.

51.New lab Water Bath Incubator Shaker

Double wall, inside made of S.S. and outside of M.S duly powder coated with a Temperature range ambient +5⁰C to 80⁰C, Temp is controlled by Micro Processor based Digital Temperature Controller Cum Indicator (LED) with an accuracy of +/-0.5⁰C and shaking speed of oscillating tray is 40 to 140 RPM. Supplied with SS tray having Lotus Clamps. Driven by geared motor and supplied without thermometer.

Model	Size	Capacity
NLE-WBIS1	280 x 300 x 175mm	15 Ltr 9 Flasks x 100ml

Optional :

50ml x 12 Flask, 150ml x 9 Flasks, 250m x 5 Flasks, 500ml x 4 Flasks, 1000 mlx 1 Flask & 2000 mlx 1 Flask holding trays can be supplied at an extra cost of Rs. 2000/- each

Model	Size	Capacity
NLE-WBIS2	360 x 330 x 170mm	21 Ltr 12 Flasks x 100ml

Optional :

50ml x 12 Flasks, 150ml x 9 Flasks, 250ml x 6 Flasks, 500ml x 4 Flasks, 1000 ml x 2 Flasks & 2000 ml x 1 Flask holding trays can be supplied at an extra cost of Rs. 2000/- each.
